Apollo Series
A heavy duty trailer designed for vertical masts; it can be used either with outdoor equipment or indoor equipment when
equipped with an enclosure. This platform is ideal for the situation where the need for maximum coverage calls for
multiple masts. Each mast will reach 60', and each has a massive 1200 lb capacity. Similar to the horizontal mast the
heavy duty hydraulically-operated design will support mid-mast deployments, unlike pneumatic masts.
Trailer features include (partial list):
- Heavy duty dual axles
- Tandem wheels & spare tire
- Zinc oxide painted finish
- Low 24" platform height with steps
- Cable holder at each mast & storage compartments
- 8' x 16' trailer platform with non-slip metal decking
- Sliding tongue to minimize the storage footprint
- Leveling stabilizers and jacks
- Fold-down step
- Lockable storage box
Maverick mast features include (partial list):
- Capable of lifting 1200 lbs
- Heavy duty steel construction
- 3-way aluminum antenna mount
- 60' height from ground to top of antenna mount
- Mast can be stopped at any increment
- Hydraulic powered
- (2) cable reels for storing cables when mast is retracted
Enclosure features include (partial list):
- Aluminum body with powder coat finish
- 90" wide x 132" long x 98" high
- Gasketing instead of caulking between sections
- Dual rear doors with removable center post for easy access
- Insulated walls and ceiling
- Non-slip walking surface with Unistrut attachments
- (2) 3-ton air conditioners
- Overhead cabling ladder
- RF entry ports
- Plywood Telco boards
- Manual transfer switch and 120V breaker panel
- Interior and exterior GFI outlets
- Overhead lights and light switch
- Smoke detector, first aid kit, fire extinguisher, saline eye wash station
Options include:
- Pneumatic masts
- Galvanized trailer finish instead of zinc oxide paint
- Microwave positioner
- Heavy duty Copper Keeper
- Mid-mast deployment collars
- Grate decking material instead of non-slip metal plating
- Power Generator or Fuel Cell, and fuel tank
- Color of trailer and enclosure

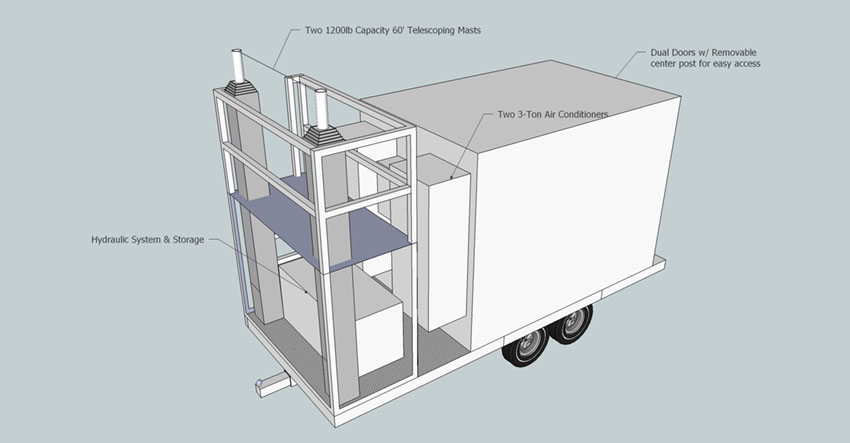

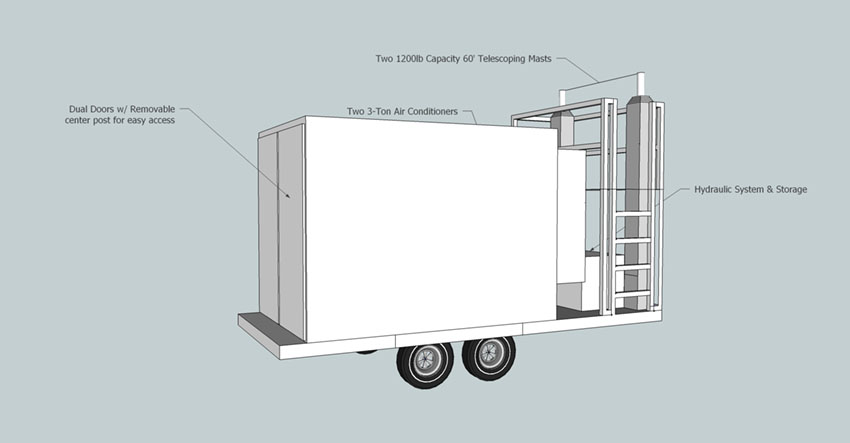

Design Concept -
Shown with the optional enclosure; will work with outdoor equipment also. For pictures of our Macro
platforms, as actually customized for individual customer needs, click here.
