Hercules Series

A trailer with a horizontal mast, which pivots into a vertical position when deployed. Typically used with outdoor equipment, but can be designed to accommodate an enclosure. The standard mast height is 60' (mast heights of 100' and 150' are also available as options). Its heavy duty hydraulically-operated design will not only lift a massive 1200 lbs., but will support mid-mast deployments, unlike pneumatic masts.

Trailer features include (partial list):

• Heavy duty dual axles
• Single wheels & spare tire
• Zinc oxide painted finish
• Low 26" platform height
• 8' x 18' trailer platform with non-slip metal decking
• Leveling stabilizers and jacks
• Fold-down step
• 14,000 GVWR

Maverick mast features include (partial list):

• Capable of lifting 1200 lbs
• Heavy duty steel construction
• 60' maximum height, can be stopped at any increment
• 3-way aluminum antenna mount
• Hydraulic powered
• 74" clearance under mast retracted

Options include:

• Galvanized trailer finish instead of zinc oxide paint
• Microwave positioner
• Heavy duty Copper Keeper
• Mid-mast deployment collars
• Grate decking material instead of non-slip metal plating
• Power Generator or Fuel Cell, and fuel tank
• Color of trailer
• Lockable storage box
• Cable reel

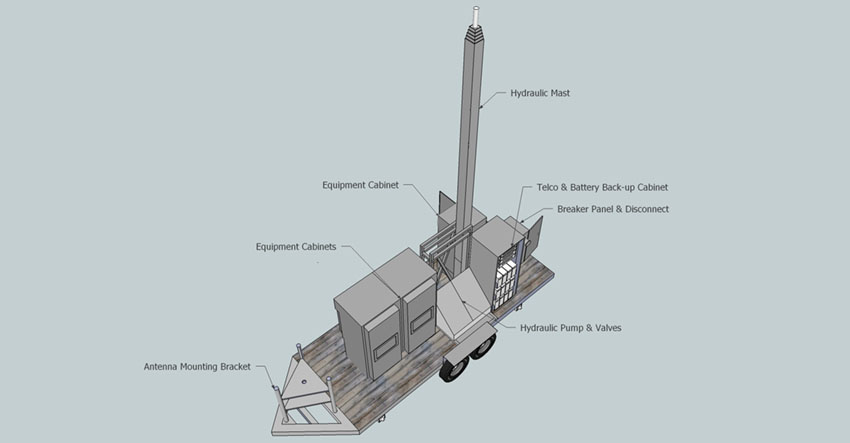

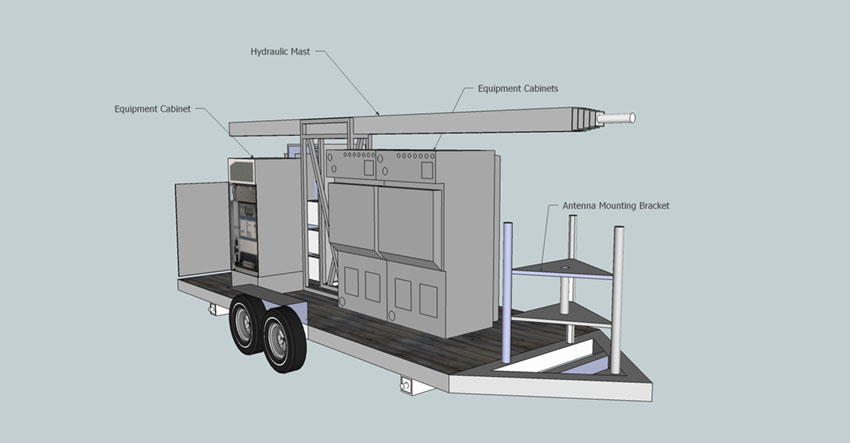

Design Concept -

Shown with the optional enclosure; will work with outdoor equipment also. For pictures of our Macro platforms, as actually customized for individual customer needs, click here.
