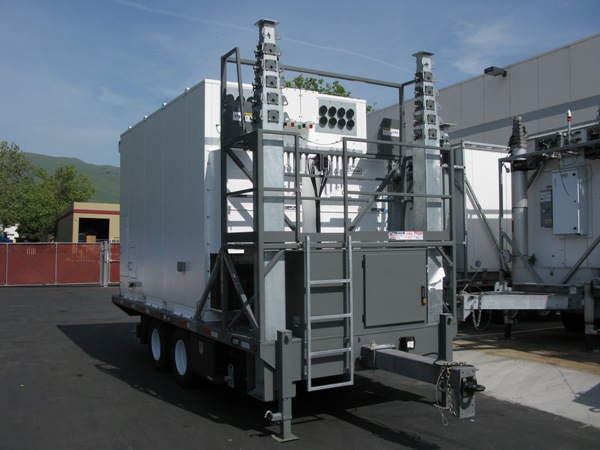

Apollo Series

A heavy duty trailer with a 13' enclosure. This platform is ideal for the situation where the need for maximum coverage calls for multiple masts. Each mast will reach 60', and each has a massive 2500 lb capacity. The heavy duty hydraulically-operated design will support mid-mast deployments, unlike pneumatic masts.

Features include (partial list):

• Heavy duty dual axles with tandem wheels & spare tire
• 8' x 16' trailer platform with non-slip metal decking
• Sliding tongue to minimize the storage footprint
• Heavy duty steel mast is capable of lifting 2500 lbs
• 60' height from ground to top of antenna mount
• Hydraulically powered mast can be stopped at any increment
• Aluminum body enclosure 90" wide x 132" long x 98" high
• Dual rear doors with removable center post for easy access
• (2) 3-ton air conditioners and insulated walls and ceiling

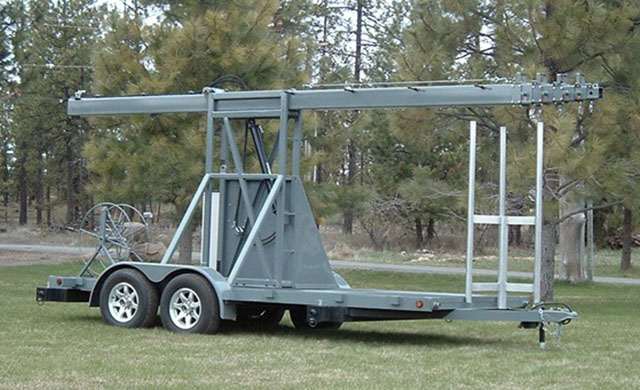

Hercules Series

A trailer with a horizontal mast, which pivots into a vertical position when deployed. Typically used with outdoor equipment, but can be designed to accommodate an enclosure. The standard mast height is 60'(mast heights of 100' and 150' are also available as options). Its heavy duty hydraulically-operated design will not only lift a massive 1200 lbs., but will support mid-mast deployments, unlike pneumatic masts.

Features include (partial list):

• Heavy duty dual axles with single wheels & spare tire
• 8' x 18' trailer platform with non-slip metal decking, 14,000 GVWR
• Leveling stabilizers and jacks
• Heavy duty steel mast is capable of lifting 2500 lbs
• 60' maximum height, and 3-way aluminum antenna mount
• Hydraulically powered mast can be stopped at any increment
• Grate decking material instead of non-slip metal plating
• 74" clearance under mast retracted
